Fast interpolation of paneled detector data, optimized for static sampling positions.

Main features

  • Plan first -> execute fast approach.
  • Mask aware interpolation.
  • Native support for paneled data
  • EXtra-geom integration.

Installation

It is available on pipy so you can simply pip install the package

pip install static-interpolation

Usage

AGIPD_1M Detector & polar grid on Ewald's sphere

agipd_interpolation

import static_interpolation as si
from extra_geom import AGIPD_1MGeometry,agipd_asic_seams
from matplotlib import pyplot as plt

geom = AGIPD_1MGeometry.from_quad_positions(quad_pos=[
    (-525, 625), # in mm
    (-550, -10),
    (520, -160),
    (542.5, 475),
])

# Things that are not in geom but needed
nr,nphi = (512,2048) # polar coord shape
detector_origin = (0.0,0.0,0.2) # in meters
xray_energy = 7000 # in eV


# Instanciate the interpolator
agipd_interp = si.AGIPD_1MInterpolator.from_polar_ewald(geom,
                                         nr,
                                         nphi,
                                         xray_energy,
                                         detector_origin
                                         )

# make test data
data,masks = si.utils._generate_test_data(geom,n_images=150)

# Interpolate 150 agipd patterns in one go
out,out_masks = agipd_interp(data,masks)


# Plotting

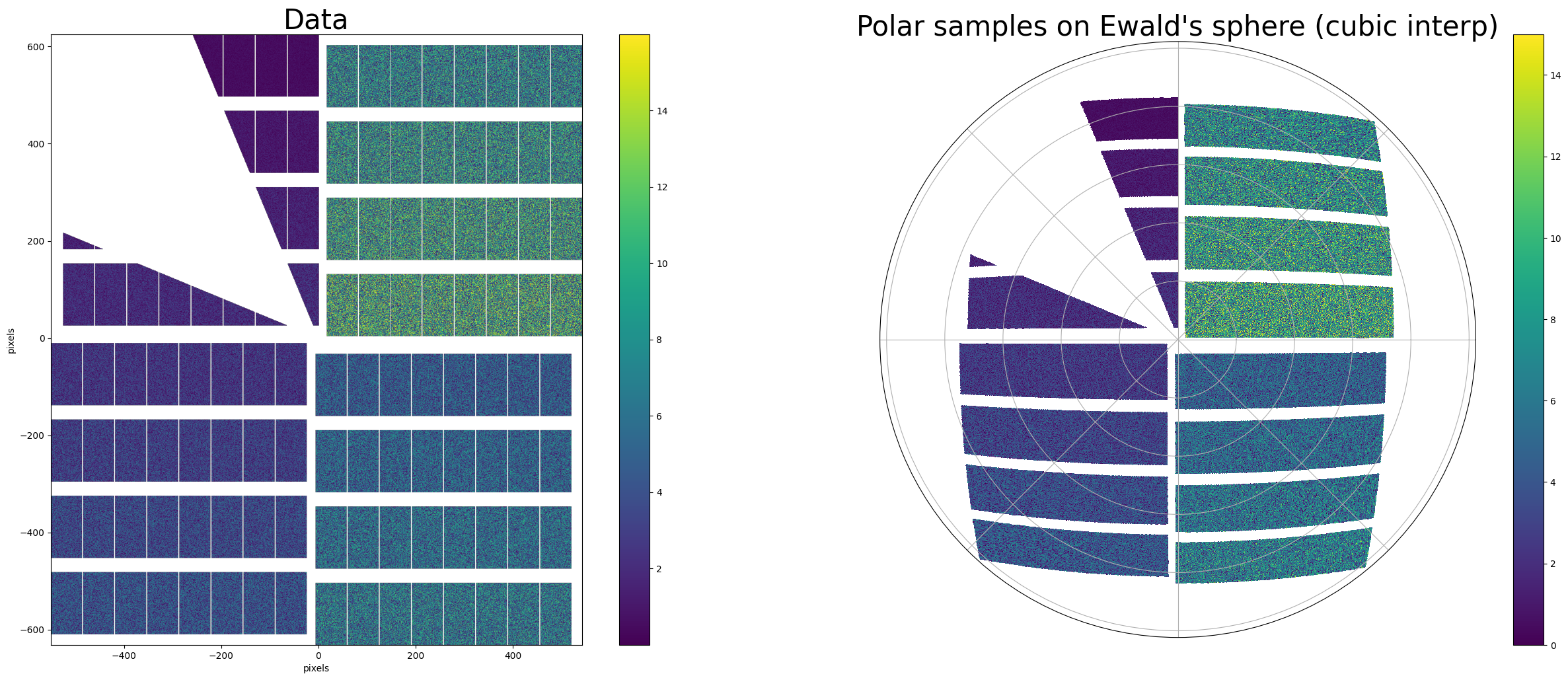

fig = si.utils._plot_detector_test(data[0],masks[0],out[0],out_masks[0],geom,figsize=(32,12))
plt.show()

General example

simple_interpolation

import numpy as np
import static_interpolation as si
from matplotlib import pyplot as plt

# simple cubic interpolation using 1 panel

# generate test data
rng = np.random.RandomState(12345)
nx,ny = 5,5
n_samples = 100
n_images = 20
data = rng.random((n_images,nx,ny))


# define image layout
layout = si.data_structures.ImageLayout.from_shape((nx,ny))

# define sampling points
sampling_points = np.stack(np.meshgrid(np.arange(n_samples)*(nx-1)/n_samples,np.arange(n_samples)*(ny-1)/n_samples,indexing='ij'),axis=-1)
samples = si.data_structures.SamplingGrid(points = sampling_points[None,...],n_panels=1)

# options
options = si.config.InterpolationPolicy()
options.method = options.Method.linear

# Instanciate interpolatiors
interp_cubic = si.interpolators.StaticInterpolator(samples,layout=layout)
interp_linear = si.interpolators.StaticInterpolator(samples,layout=layout,policy=options)

# Execute interpolations for all 20 images
out = interp_cubic(data)
out_linear = interp_linear(data)

# Plot Result

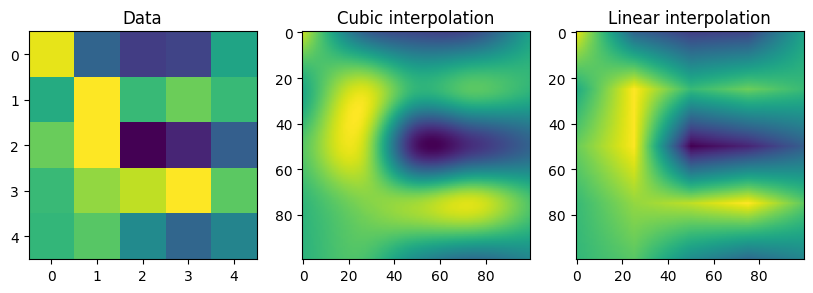

fig,axs = plt.subplots(1,3,figsize=(10,5))
axs[0].imshow(data[0])
axs[0].set_title("Data")
axs[1].imshow(out[0])
axs[1].set_title("Cubic interpolation")
axs[2].imshow(out_linear[0])
axs[2].set_title("Linear interpolation")
plt.show()
